Ajax DoorProtect

Description

Ajax DoorProtect Jeweller – wireless door and window opening detector with optional Chime

The Ajax DoorProtect Jeweller is a compact wireless detector designed to monitor doors, windows and other indoor openings. When the protected door or window opens, the magnet moves away from the detector’s reed switch and DoorProtect immediately reports the event to the Ajax hub.

In addition to intrusion detection, DoorProtect can also be used as a practical door chime. When the Ajax Chime feature is enabled, a compatible Ajax siren can emit a short audible signal whenever the selected door or window is opened while the alarm system is disarmed.

---

Choose the Right Option

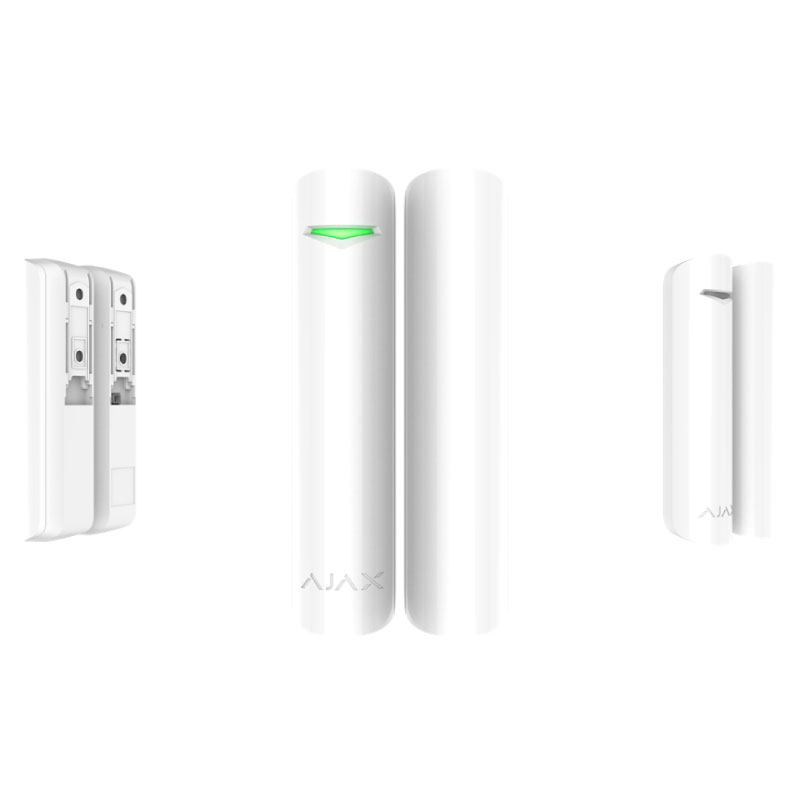

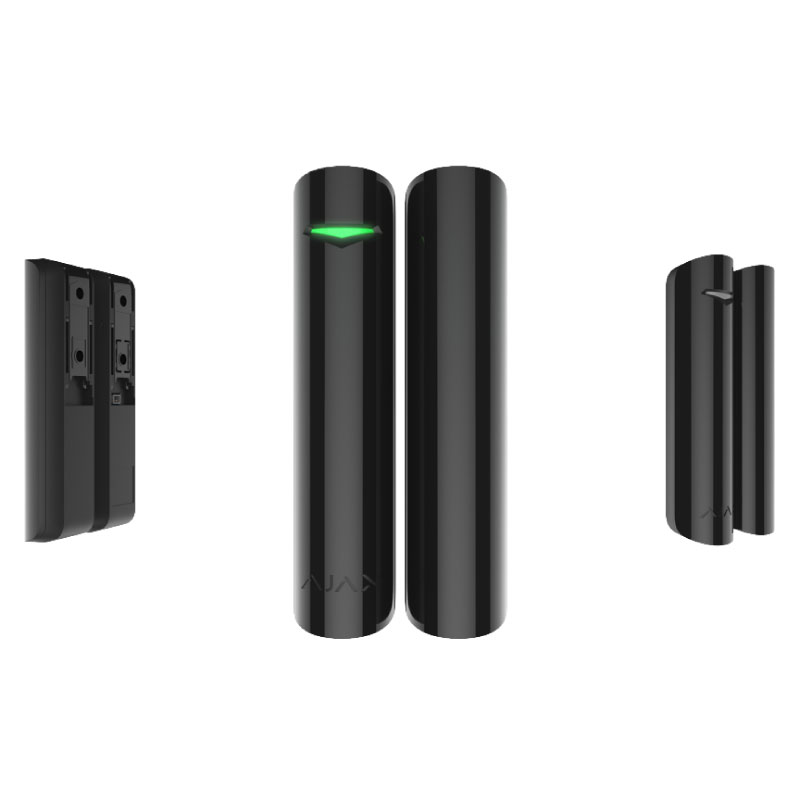

DoorProtect Jeweller is available in white and black. Both colour options provide the same opening detection, wireless communication, Chime support and battery performance, so choose the finish that best suits the door or window frame.

---

How It Works

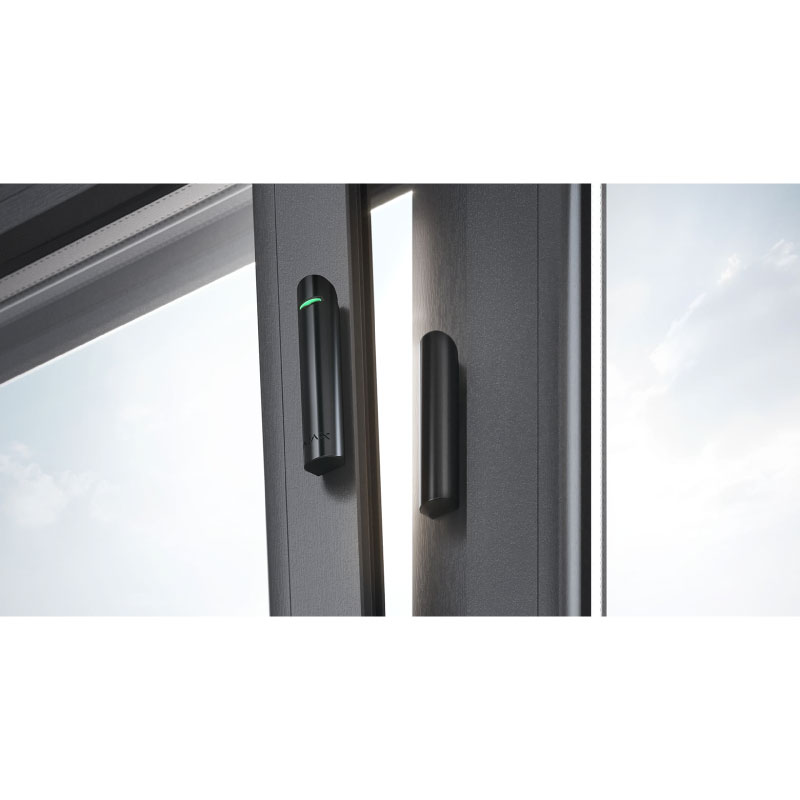

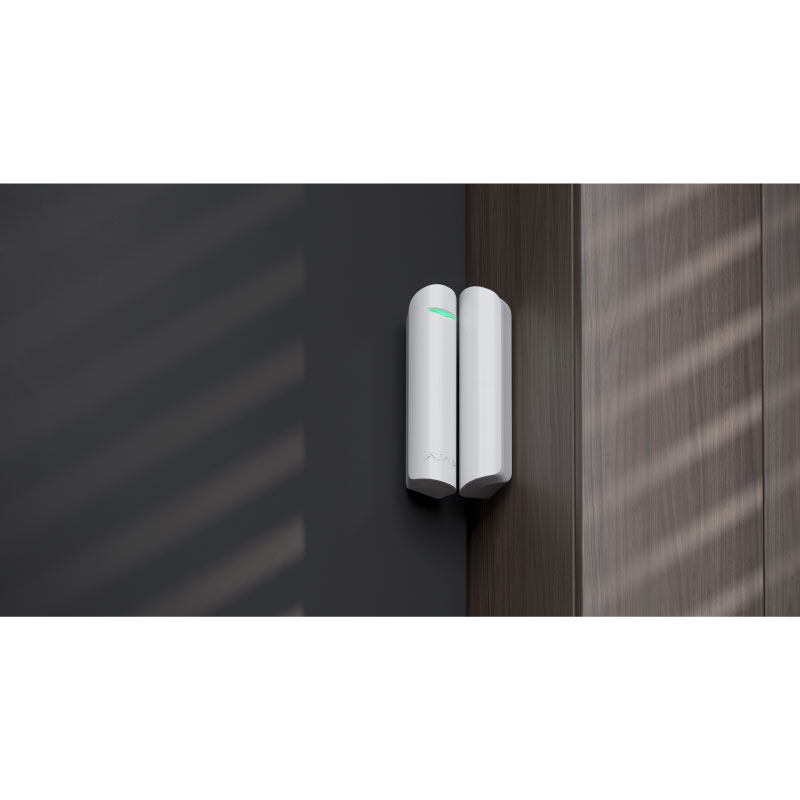

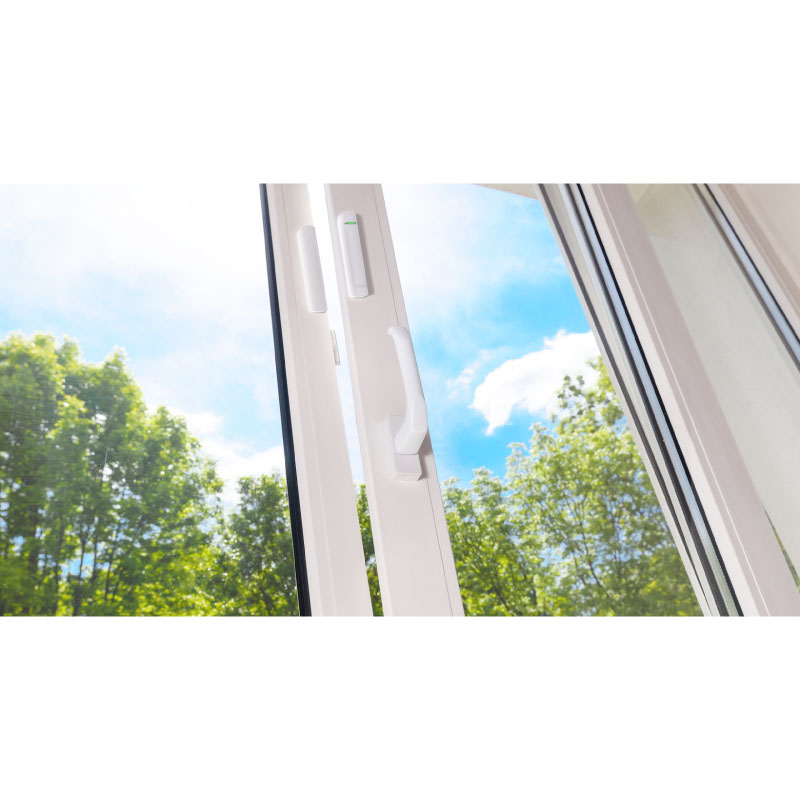

DoorProtect consists of the detector and a permanent magnet. The detector is mounted on the fixed part of the door or window, while the magnet is attached to the moving section. When the opening is closed, the magnetic field keeps the reed switch closed. Opening the door or window moves the magnet away, causing the detector to register the opening and transmit the event to the Ajax system.

The supplied small magnet operates at distances of up to 1 cm and is useful where the detector and magnet are mounted on perpendicular surfaces. The large magnet operates at distances of up to 2 cm and is suited to installations where both parts are positioned on the same plane.

When Chime is configured, the opening can also trigger a selected compatible Ajax siren while the system is disarmed. The siren can be configured to sound between 1 and 4 short beeps, making the feature useful as an entry notification in shops, offices, reception areas and homes.

How to set up and enable Chime (external link)

---

Why Choose This Product?

• Instant opening detection: monitors doors and windows so the Ajax system can react as soon as a protected opening is breached.
• Useful door-chime function: compatible Ajax sirens can provide an audible notification when a selected door or window opens while the system is disarmed.
• Durable reed-switch design: the opening sensor is designed to withstand more than two million opening cycles.
• Two supplied magnets: large and small magnets make it easier to accommodate different door and window frame layouts.

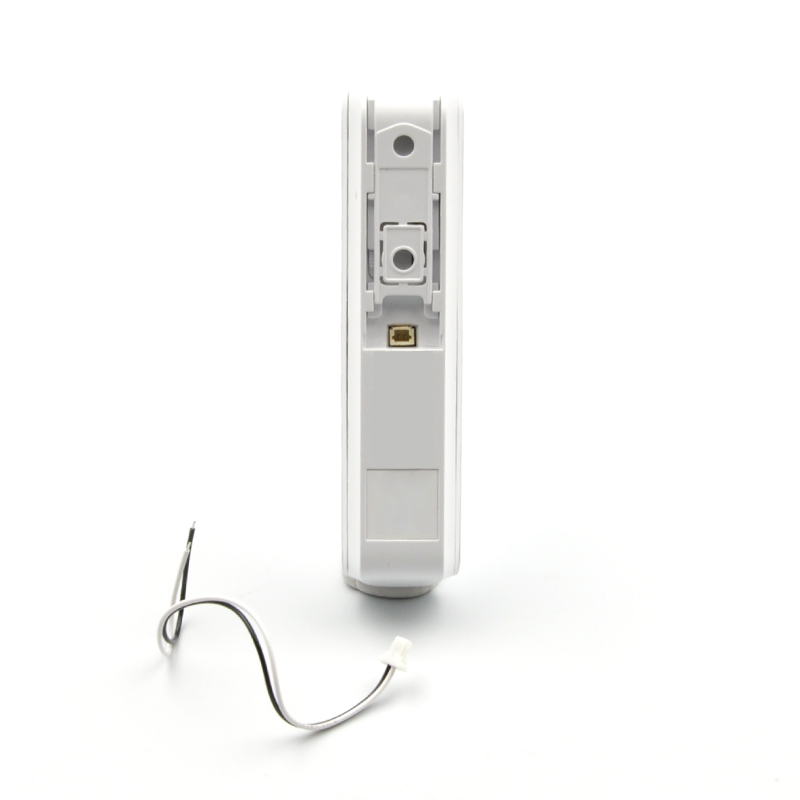

• External NC input: a compatible third-party wired detector can be connected when an additional contact or sensor needs to be incorporated into the Ajax system.
• Long-range Jeweller communication: provides up to 1,200 m communication distance in open-space conditions.
• Long battery life: the pre-installed CR123A battery provides up to 7 years of calculated operation under typical conditions.

---

Before You Buy

• A compatible Ajax hub is required and is sold separately.
• To use the Chime function, the system must also include a compatible Ajax siren.
• Chime is supported by HomeSiren Jeweller with firmware 5.55.1.0 or later.
• Chime is supported by StreetSiren Jeweller with firmware 3.73.1.0 or later.
• Chime is supported by StreetSiren DoubleDeck Jeweller with firmware 3.73.1.0 or later.
• The Chime notification operates when the Ajax system is disarmed and can be configured for selected opening detectors.
• DoorProtect Jeweller is designed for indoor installation and has an IP50 enclosure rating.
• The magnet must be installed on the right-hand side of the detector at the marked position for correct operation.
• Use the small magnet at distances up to 1 cm or the large magnet at distances up to 2 cm.
• A third-party wired detector connected to the external input must use a normally closed (NC) contact.

---

Technical Specifications

Brand	Ajax
Model	DoorProtect Jeweller
Product Type	Wireless indoor door and window opening detector
Sensing Element	1 × sealed contact reed switch
Opening Sensor Life	More than 2 million openings
Small Magnet Operating Distance	Up to 1 cm
Large Magnet Operating Distance	Up to 2 cm
Chime Function	Supported with compatible Ajax siren
Chime Sound	1 to 4 short beeps, configurable
External Detector Input	Wired detector with normally closed (NC) contact
Wireless Protocol	Jeweller two-way radio communication
Wireless Communication Range	Up to 1,200 m in open space
Power Supply	1 × CR123A 3 V battery, pre-installed
Battery Life	Up to 7 years
Tamper Protection	Yes
Operating Temperature	−10 °C to +40 °C
Operating Humidity	Up to 75%
Protection Class	IP50
Dimensions	90 × 20 × 20 mm
Net Weight	29 g
Installation	Indoor
Colour Options	White or black

---

What’s in the Box

• 1 × Ajax DoorProtect Jeweller

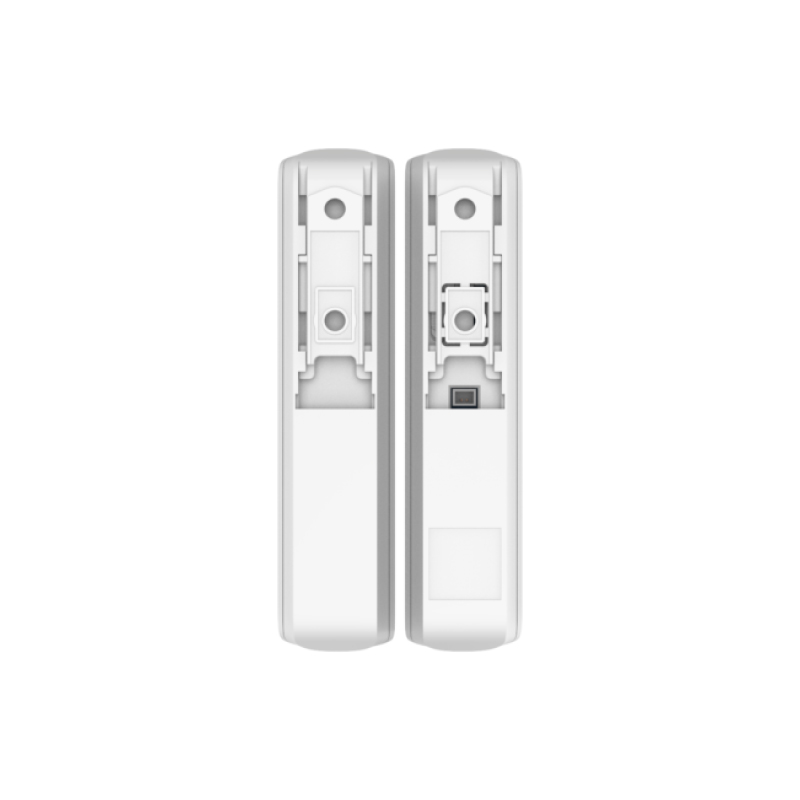

• 1 × SmartBracket mounting panel
• 1 × CR123A battery, pre-installed
• 1 × Large magnet
• 1 × Small magnet
• 1 × External connector for a third-party NC detector
• 1 × Installation kit
• 1 × Quick Start Guide
