Description

Ajax HomeSiren – Wireless indoor siren (beeping noise)

The Ajax mobile app triggers a siren noise on mobile devices by default to notify of alarm and panic activations. However there are times when mobile devices are turned off or silenced and these alarm and panic activations may go by unnoticed. For this reason it is advisable to install one of the two wireless sirens:

• Home Siren – Beeping noise to alert residents of alarm / panic activations
• StreetSiren – Loud outdoor siren to alert residents and neighbours and to scare off intruders

The Siren Volume and Actuation Time can be adjusted within the Ajax mobile app

Specifications

• Maximum effective radiated power (ERP): up to 25 mW
• Radio signal modulation: GFSK
• Radio communication range: up to 2,000 m
• Frequency hopping: To prevent radio interference and jamming.
• Key features
• Alarm type: acoustic and LED indication, Buzzer and LED.
• Warning device type: type W, Internal and self-powered.
• Alarm volume: from 80 to 100 dB at a distance of 1 m, Adjusted by a PRO or a user with admin rights in the Ajax app., 93 dB at a distance of 1 m
• Alarm duration: from 3 s to 3 min, Alarm duration up to 15 minutes is available only for sirens with firmware version NA 5.60.4.14 or higher. Adjusted by a PRO or a user with admin rights in the Ajax app.
• Siren sound frequency: 3.4 ± 0.5 kHz
• Events indication:

Alarms.
Delays when entering/leaving.
Security mode.
Security mode changing.
After-alarm indication.

• Tamper alarm: Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
• Power supply: 2× CR123A Batteries
• Calculated battery life: up to 5 years
• Dimensions: 75 × 76 × 27 mm
• Weight: 97 g
• Protection class: IP50

Installation and set up

Ready to operate straight out the box: pre-installed battery so there’s do not need to disassemble it. The device can be connected to the hub with one click in the mobile application and can be mounted on the SmartBracket in just a few minutes.

Features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

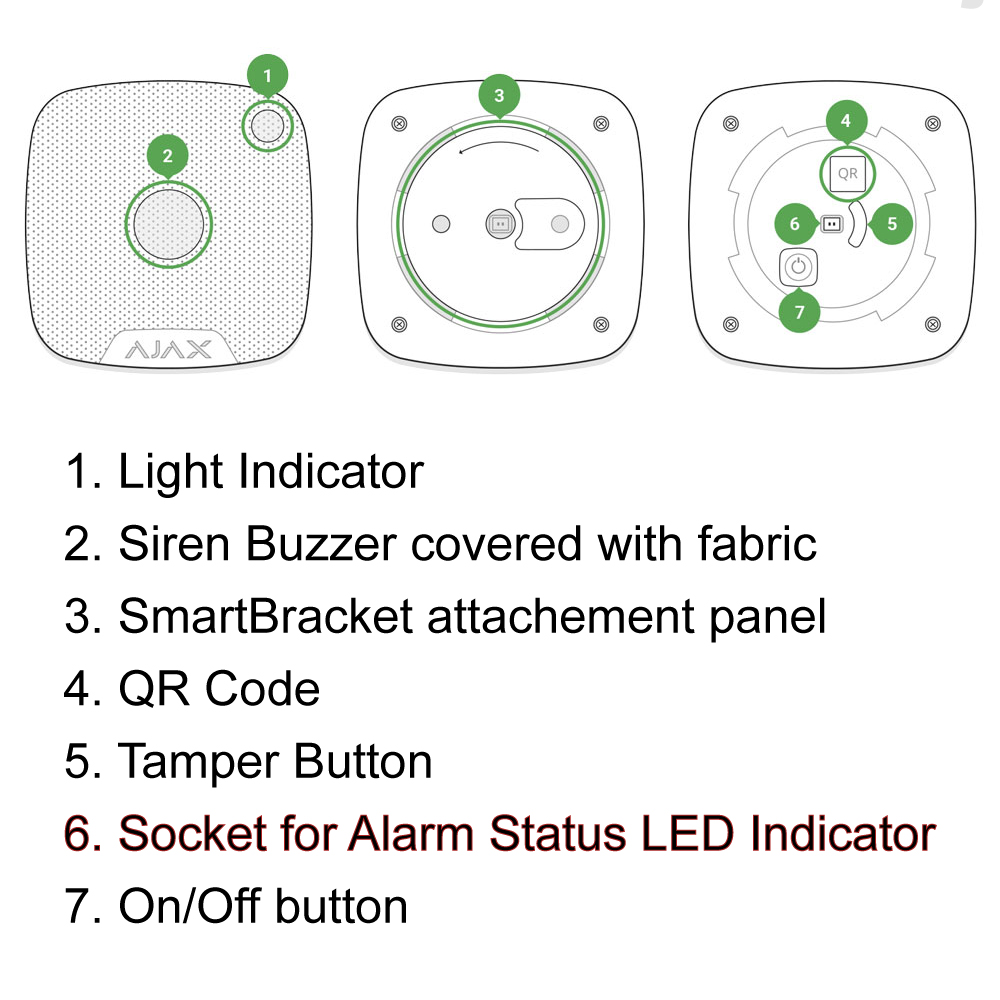

The HomeSiren includes a connector that can be used for an alarm status LED.

What’s in the Box

• HomeSiren Jeweller
• 2 × CR123A battery (pre-installed)
• SmartBracket
• Connector for LED
• indicator
• Installation kit
• Quick start guide
